  • KAMAY FERRY-LA PEROUSE WHARF

    KAMAY FERRY-LA PEROUSE WHARF

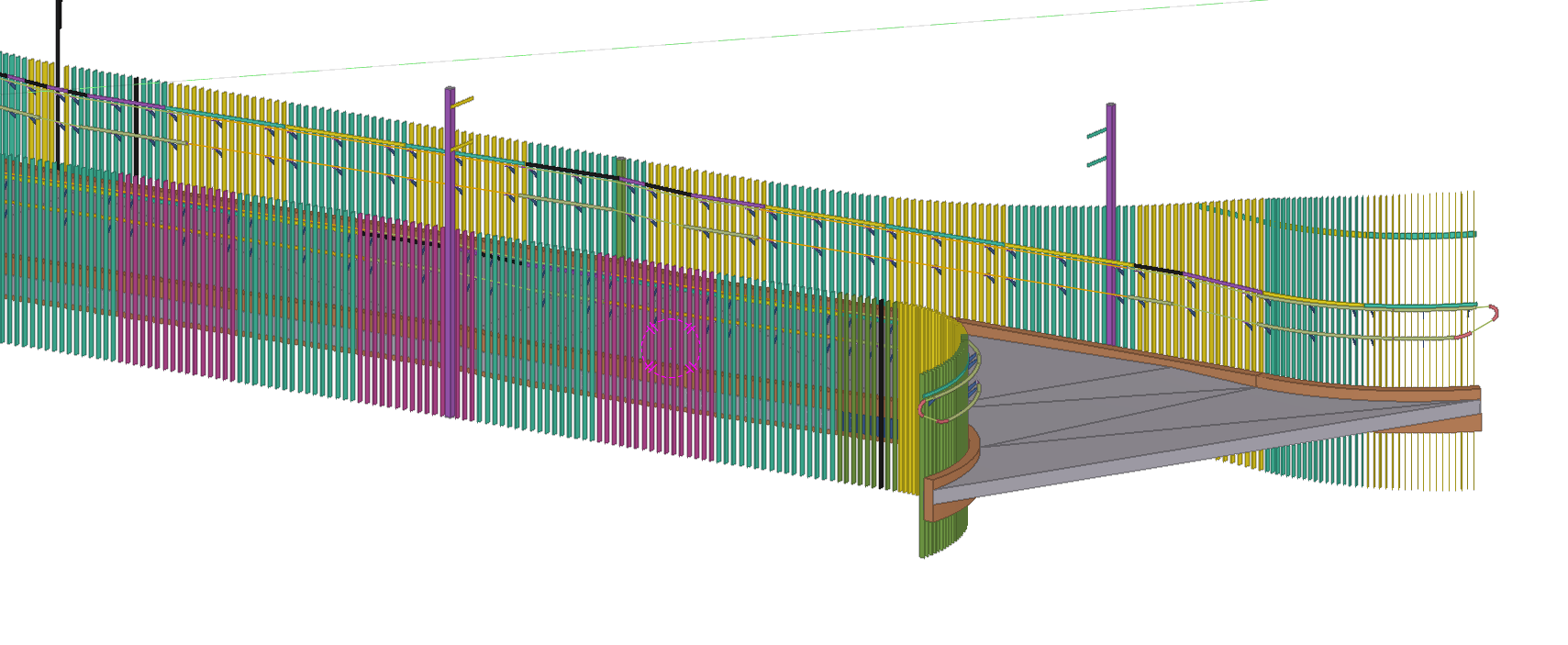

    This was a complex project, but we successfully delivered it. Our scope included the balustrade around the bridge, which needed to be provided in multiple panels. By utilizing advanced modeling techniques, we were able to complete it within a significantly shorter timeline.

    Since the structure is above the sea, we provided several cost-saving ideas for both erection and fabrication to optimize the process.

    This was drawn by Tek1 (Vignesh), if you want shop drawings for a project you are working on, feel free to call Koshy on: (03) 9560 6397.

  • Can You Spot the Mistake in This Handrail drawing?

    Can You Spot the Mistake in This Handrail drawing?

    Please review both the 3D and 2D views to identify any potential errors. Additionally, confirm whether any additional views are required for fabrication.

    Sounds fine, right? But here’s the catch—is it actually possible to fabricate with these views?

    The Hidden Problem

    If we fabricate by 3D view alone, there might be a potential error. In reality, the fabrication needs to be done upside down.

    • Fabrication Assumption: The 3D view is correct, but the plan & elevation view is incorrect.
    • As a result, the fabricator may assume the wrong orientation and fabricate it incorrectly.

    The Right Approach

    We need to provide an additional section view C-C and ensure the 3D view is correctly oriented.

    Actually, in the above drawing shows, the 3D view is placed as the underside view, which may visually appear as downside up.

    Please review correct drawings attached below.

    Always make sure any potential confusion is resolved before starting fabrication.

    So next time you see a similar detail, take a closer look—is it actually can fabricate?

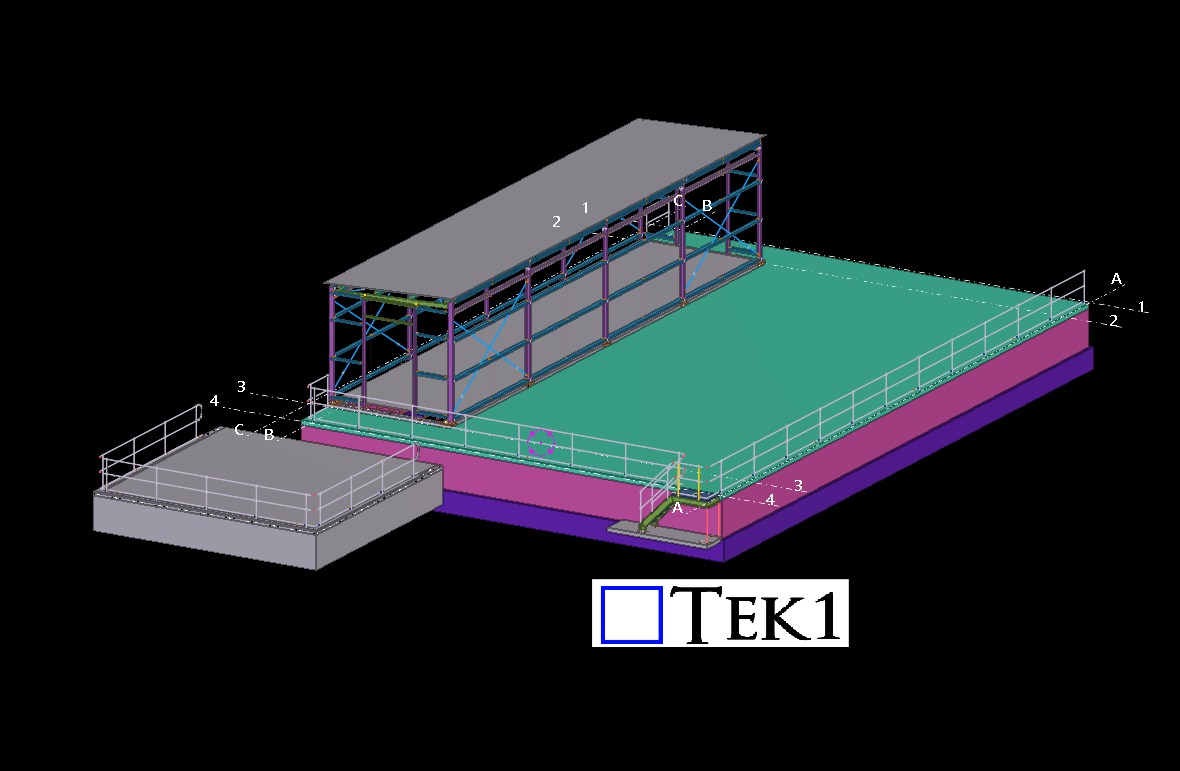

  • BRUNT ROAD

    BRUNT ROAD

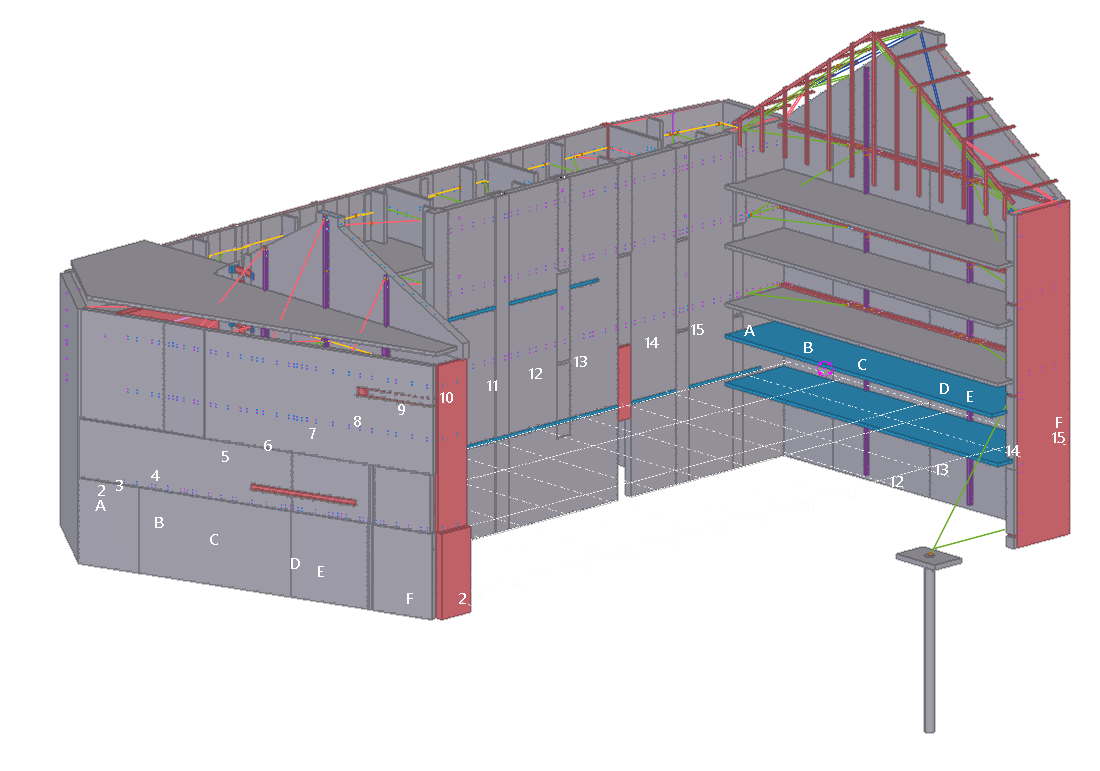

  • WEST TRADIES

    WEST TRADIES

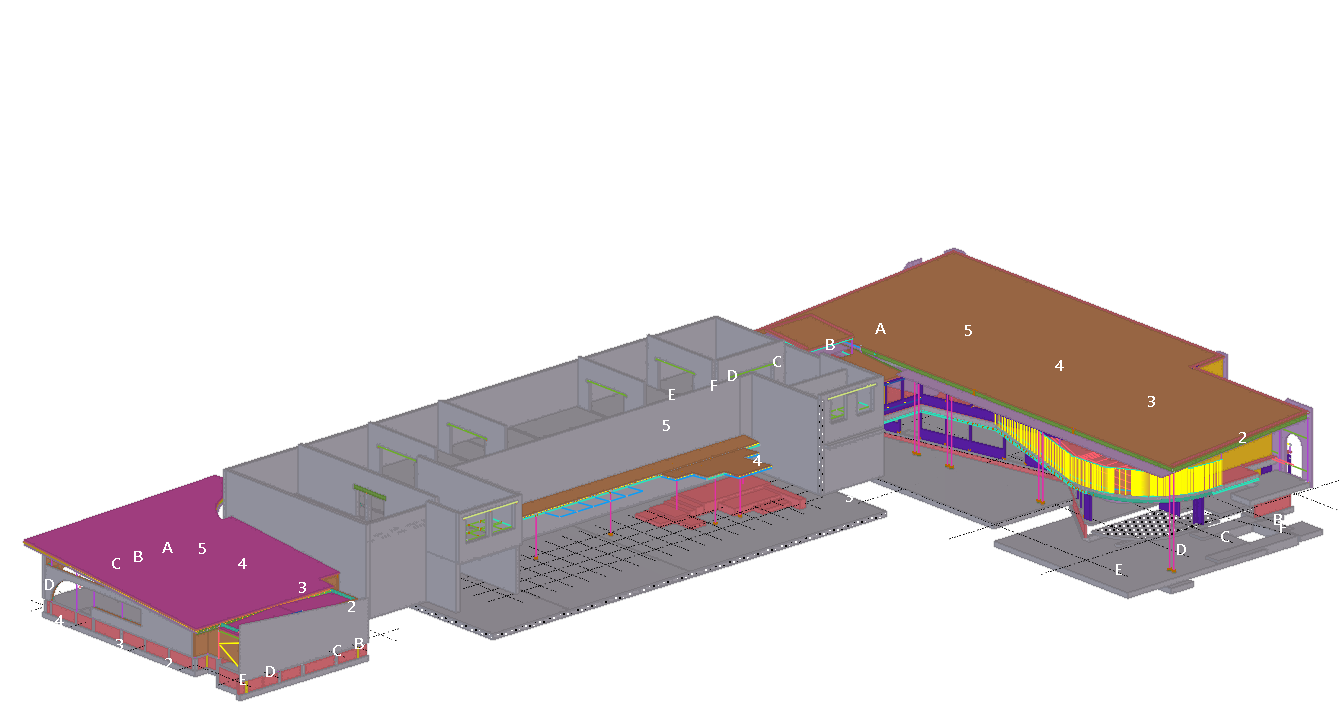

  • RYDE-SEC-COLLEGE-WALKWAY

    RYDE-SEC-COLLEGE-WALKWAY

  • Steel Projects | Sydeny | Ramp Balustrades

    Steel Projects | Sydeny | Ramp Balustrades

    This project was for a Sydney Client. Detailing Balustrades around the bridge. We analyse the proejct, develop macros to complete the project efficiently without erros

    This was drawn by Tek1 (Vignesh), if you want shop drawings for a project you are working on Call Tek1 0425791837

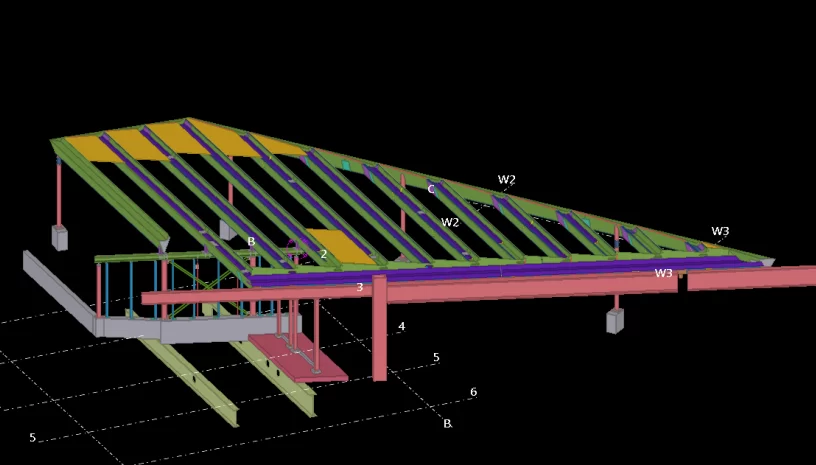

  • Eastbourne

    Eastbourne

    This is a Eastbourne. TEK1 Successfully done this job by one time detailing without any hitch.

    Some of the Model Snaps

    Overall model view



    Overall Steel model view

    Overall layout (Plan)

    Elevation

    Detailed by Vignesh & Santhakumar

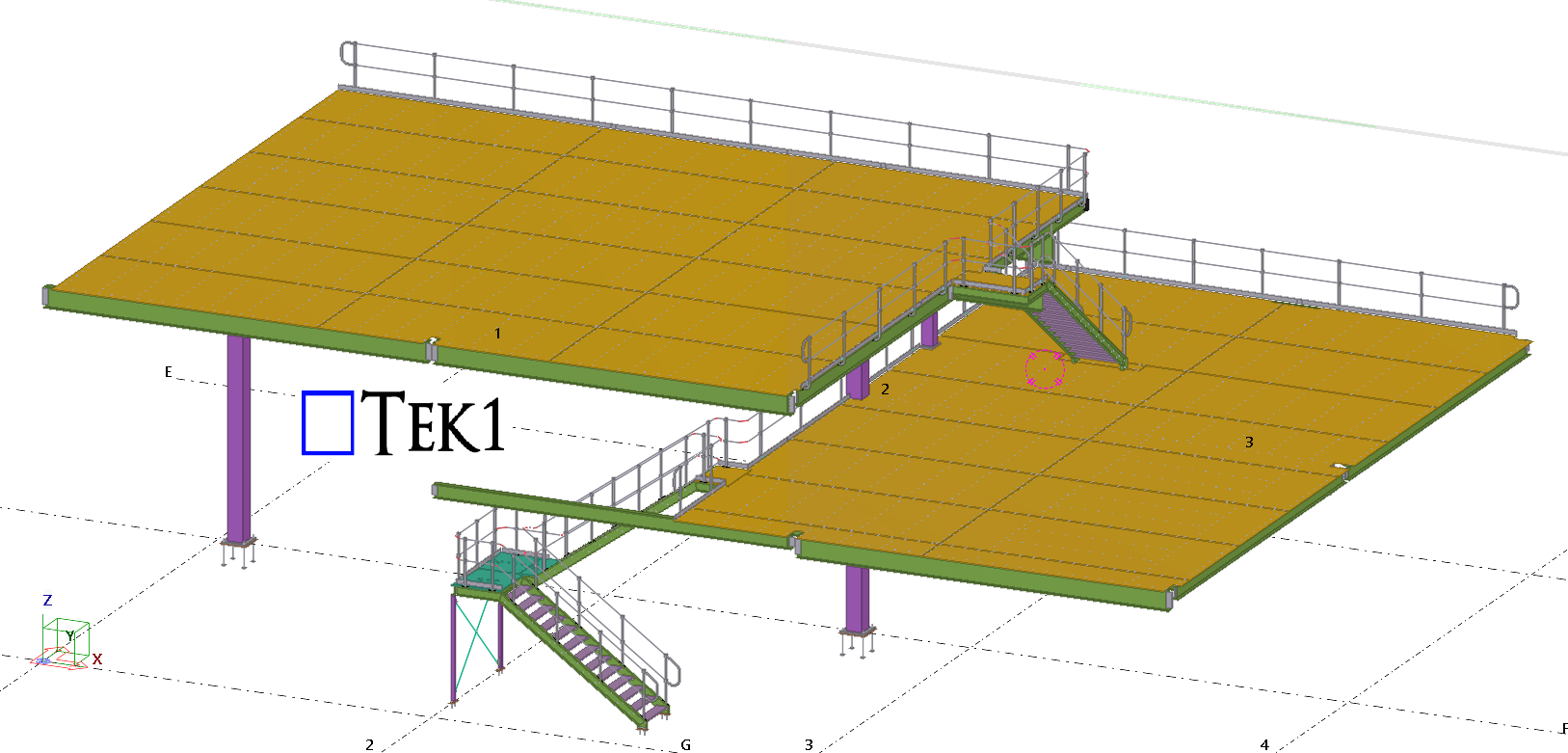

  • Woolangbar service station

    Woolangbar service station

    This is a Woolangbar service station. TEK1 Successfully done this job by one time detailing without any hitch. Some of the Model Snaps
    Overall views
    Steel- 3D-view
    Overall layout (Plan view)
    Elevation view`

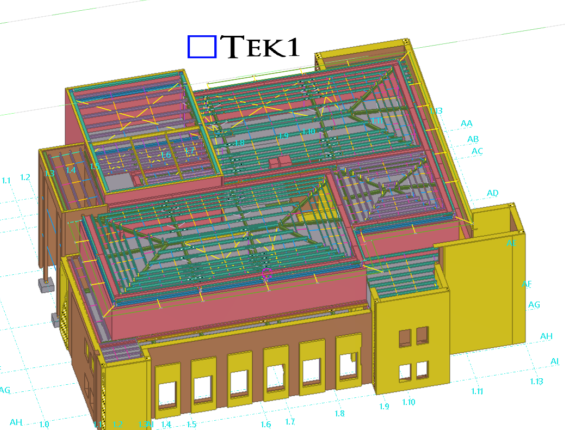

  • Oxford school-Paddington

    Oxford school-Paddington

    TEK1 Successfully done this Oxford school.

    3D-View of Oxford school

    3D-View of Oxford school

    3D-View of Oxford school – Only steel

    Plan layout of Oxford school

    Plan layout of Oxford school – Only steel

    Detailed by Vignesh & Shahul
