Category: LIGHT GAUGE STEEL BUILDINGS
-
Lot 202, Mount Keira Road, Mount Keira
About: Problems Solved: Project Highlights Designed wall cutouts and tolerances for accessing the steel column base plate within the slab Incorporated a set-down in the floor joist to accommodate the bathtub and calculated its load-bearing capacity Produced precise slab drawings with details based on the LGS model project gallery
-
Lot 57, Sturdee Street, NSW
About: Project highlights We proposed a design change to replace a concrete column for an external planter box with a double-wall LGS column. Subsequently, the client approved the proposed change and also opted to replace the concrete planter box with an LGS planter box. We provided an exclusive floor joist layout and detailed views for…
-
AMENITIES BLOCK – CASINO SHOWGROUND, NSW

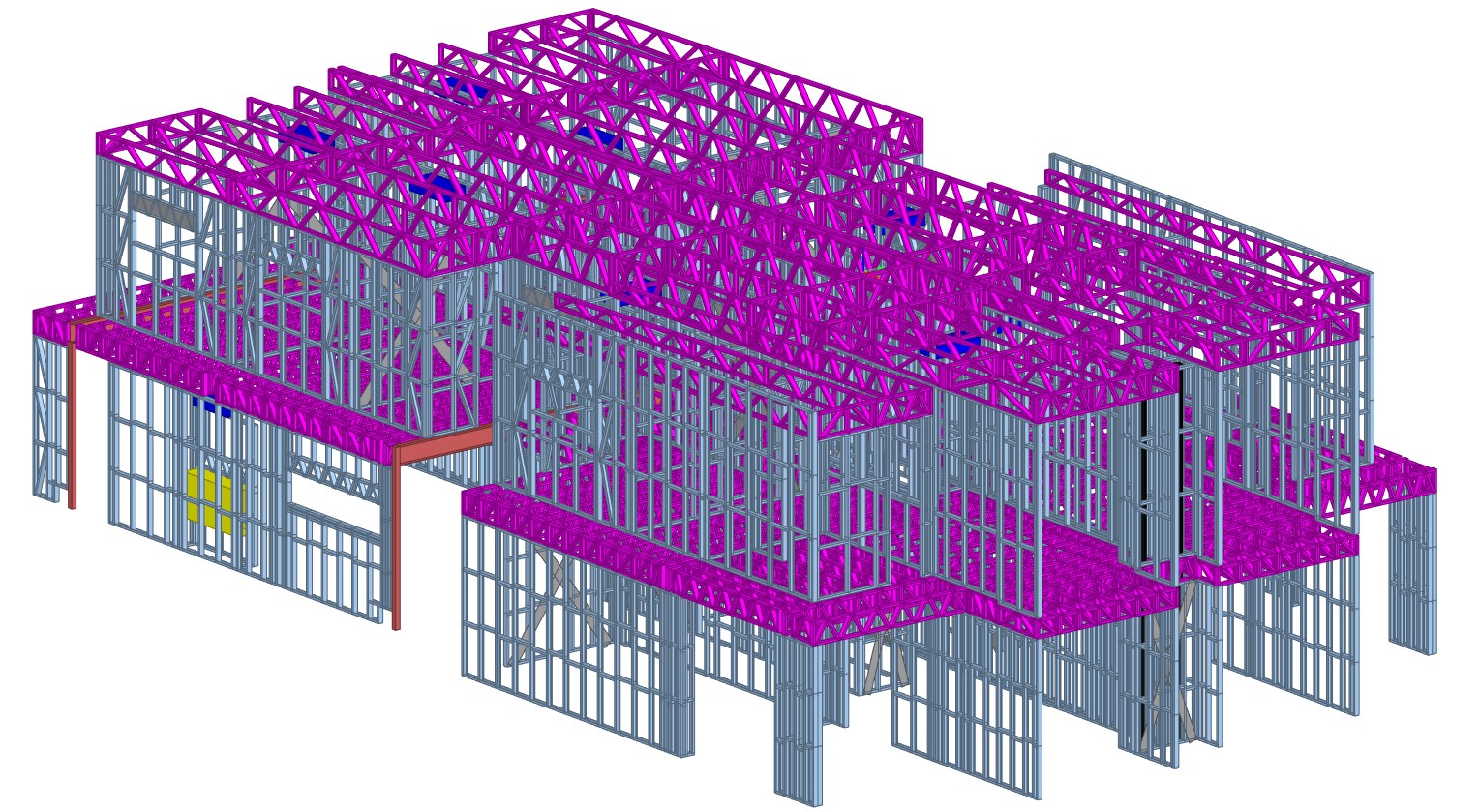

Project Name: Amenities Block -Casino showground, NSW Done By: LGS Team Team Manager: Venkatesh Balasubramanian Detailed By: Siddharthan Velmurugan Experience our LGS Model in A360 : https://autode.sk/44TZh84 This is the single-story Amenities block. Our scope of work includes LGS Frames & Structural Steel connection. We found the modelling process for the LGS frame to be…
-
LOT49 SALTAIR CIRCUIT, LENNOX HEAD

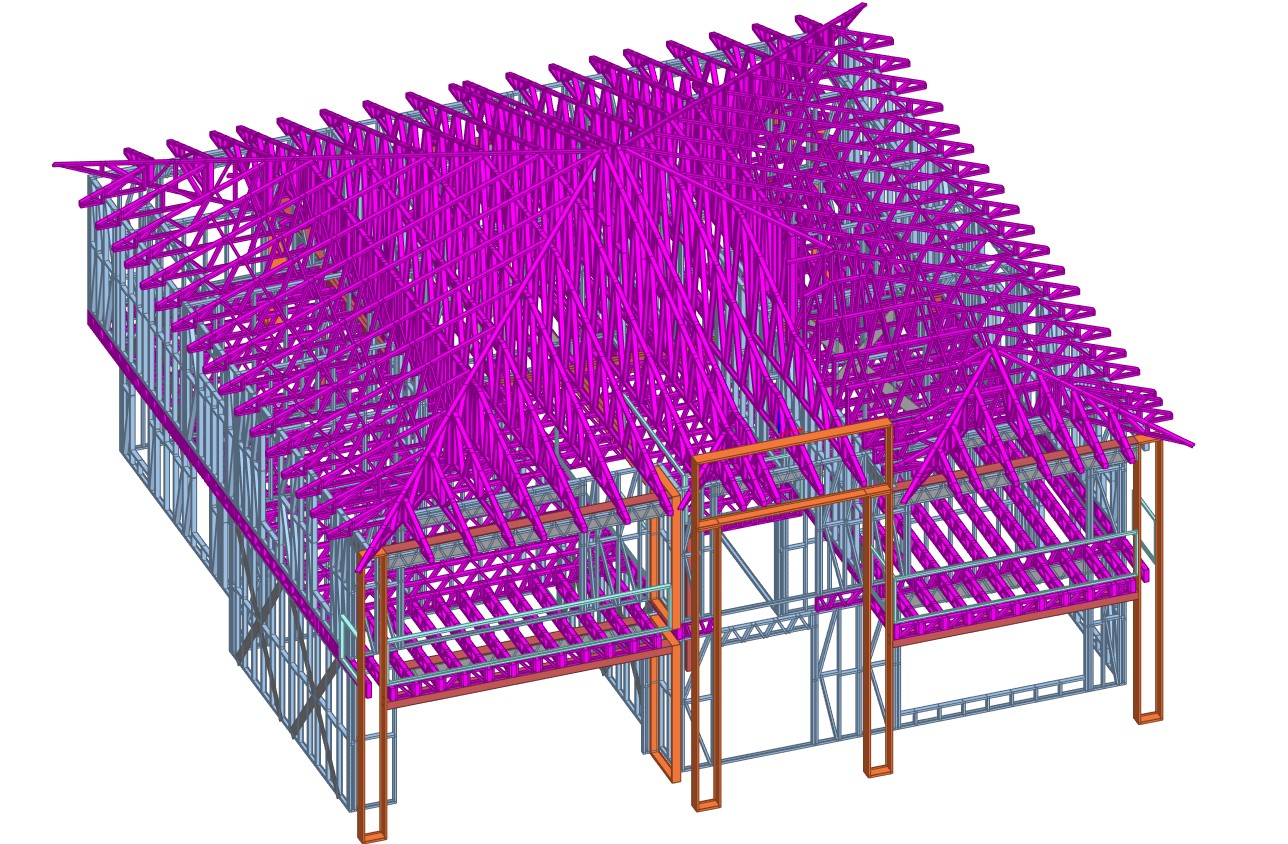

Project Name: Lot 49,Salt Air Circuit, Lennox Head Done By: LGS Team Team Manager: Venkatesh Balasubramanian Detailed By: Siddharthan Velmurugan Experience our LGS Model in A360 : https://autode.sk/3PgmgnM This model is a Two-Story Building with a Hip roof system. Our Main scope of work is to reduce the Structural steel and…
-
LGS Framing. When to send .sdp file
Do not send .sdp files when RFIs are outstanding and drawings not approved. We have 2 cases where client fabricated off approval model when RFIs were not cleared. They could fabricate only beause we sent all the files to them. Hence going forward no machine files, .sdp files to be sent to client until all…
