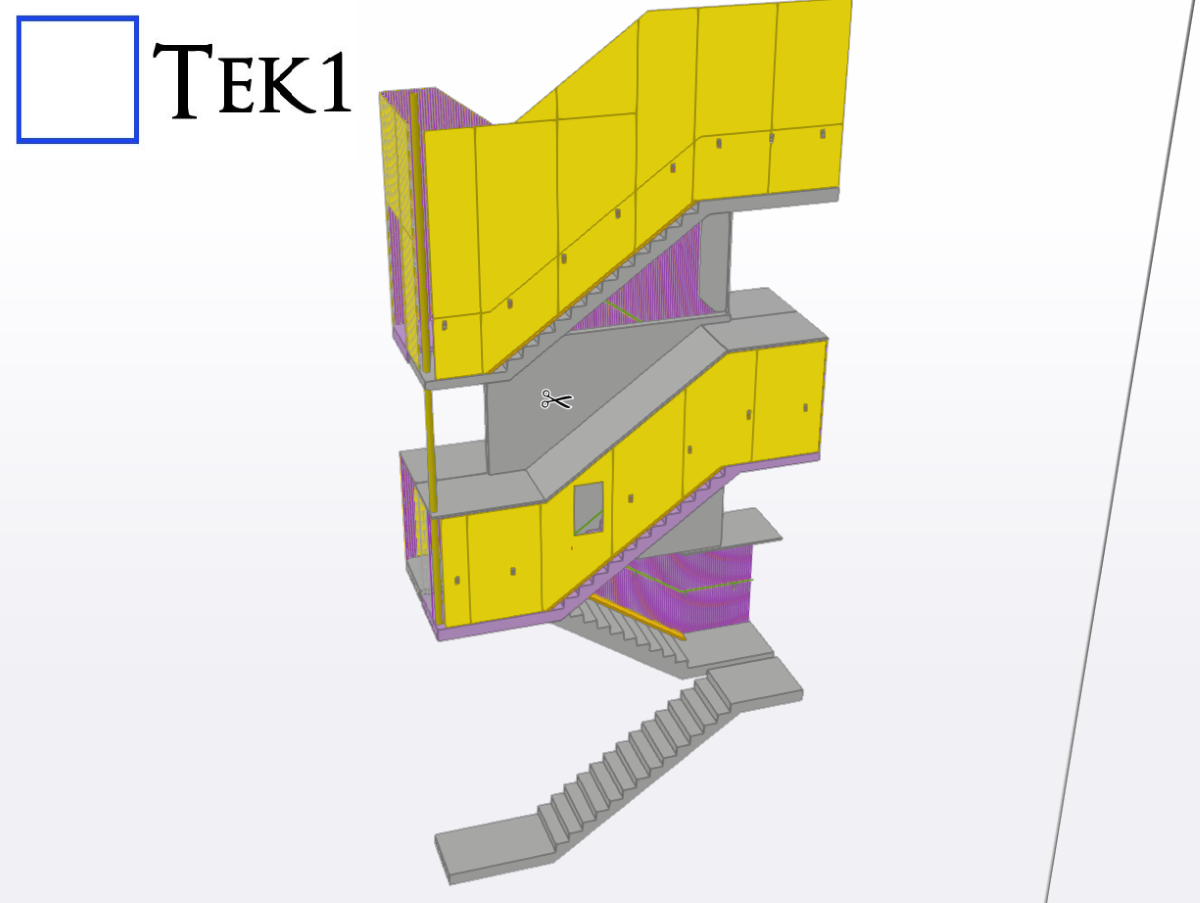

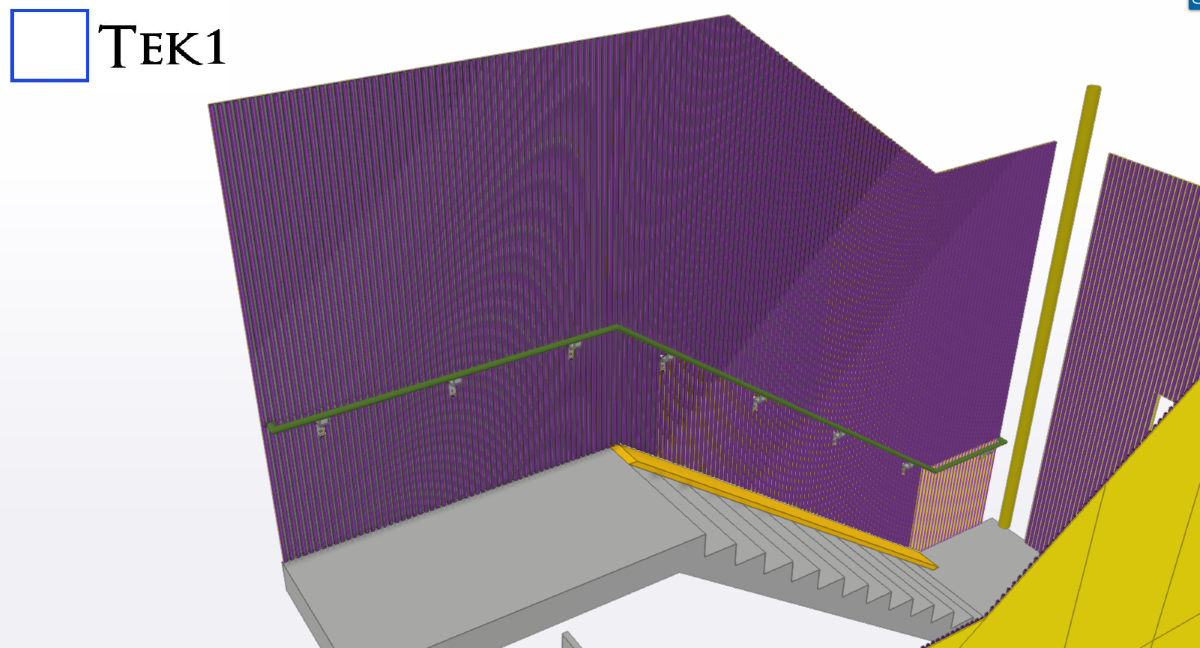

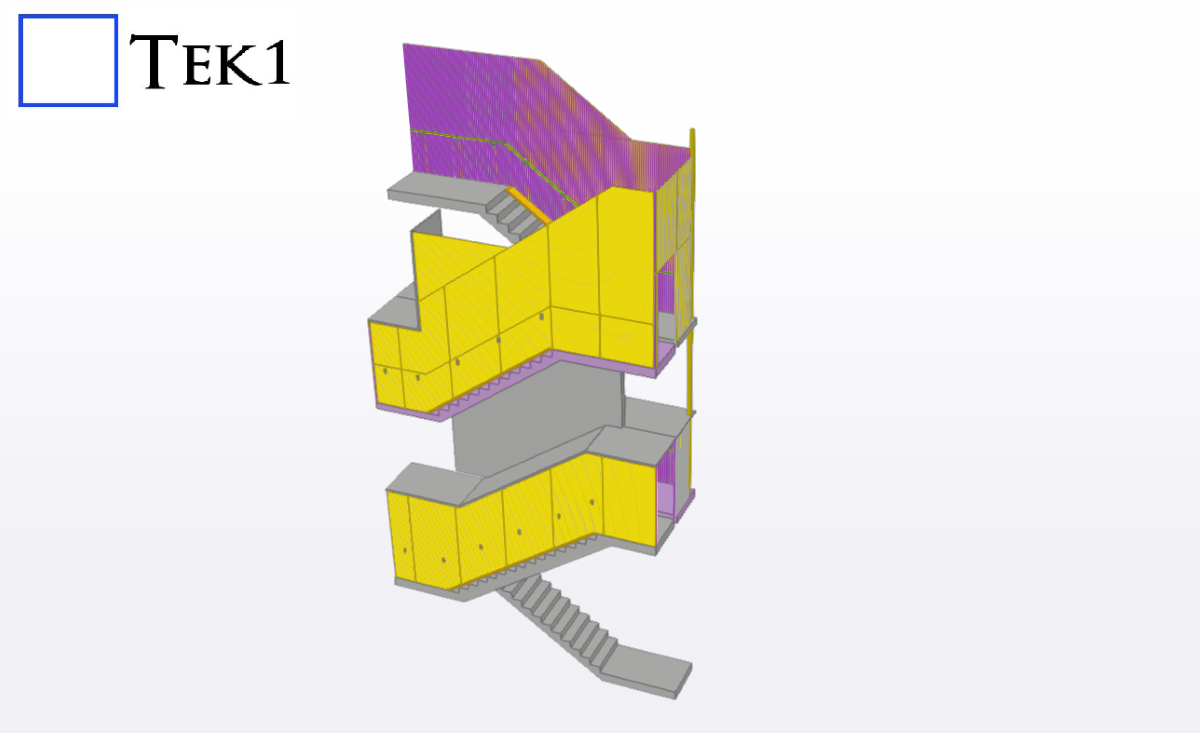

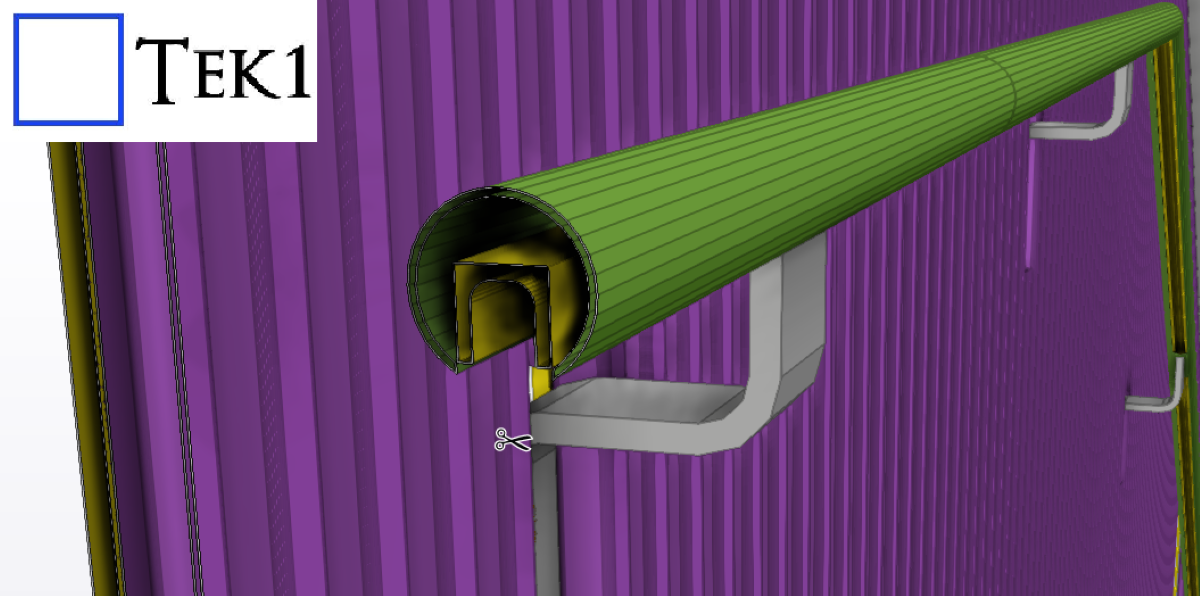

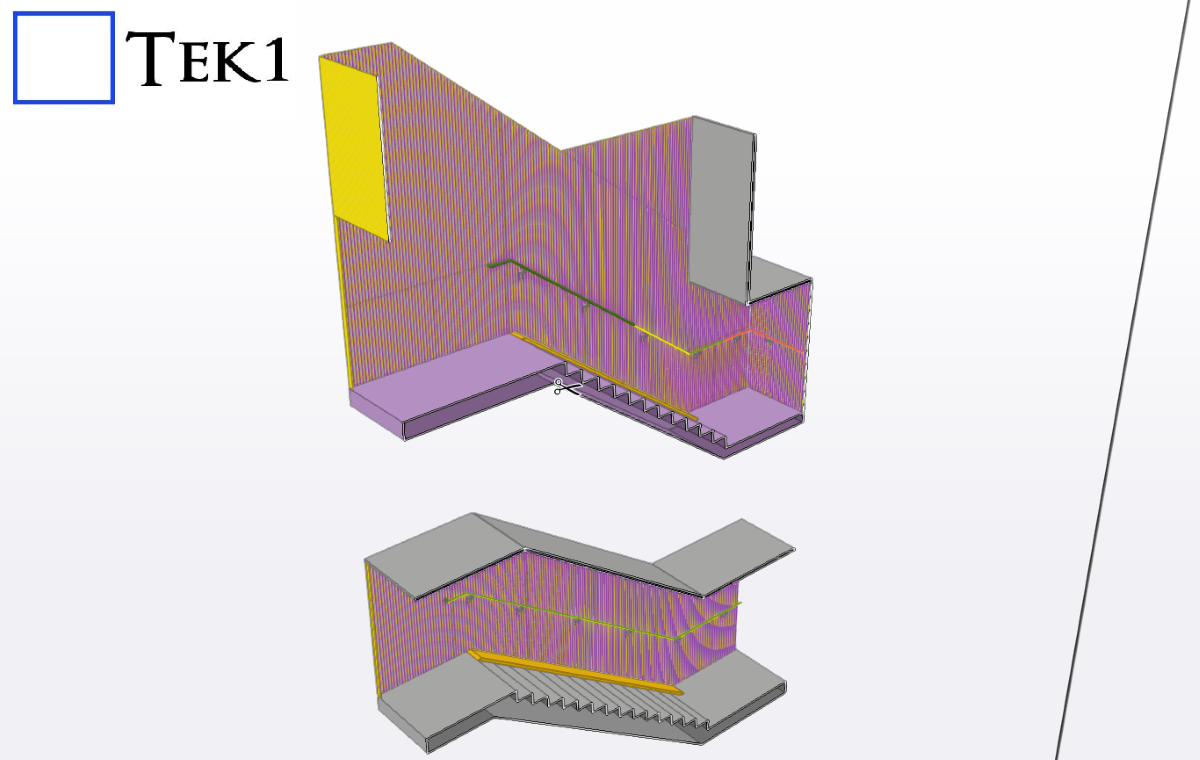

TEK1 completed a stair project for a prominent organization in Australia. The goal was to provide drawings for the stair and cladding. Apart from that, the client also wants us to detail handrails for the stairs.
Category: Steel Detailing Blog
This page show cases some of the Steel Detailing projectgs completed in Melbourne, Sydney, WA, Brisbane Tek1 has completed
-
Mildura Christian College- Classroom & Amenities
We are proud to be a part of the team in Mildura Christian College project.
Our detailing team worked closely with architects to ensure tolerances and offsets were met without compromising design intent With a limited fabrication and erection window, our detailing team adopted a fast-track workflow using Tekla Structures for 3D modeling.
This allowed us to provide early shop drawings for procurement and parallel review of sections still under coordination.
-
280-George street cladding
TEK1 completed a cladding project for a prominent organization in Australia. The goal was to provide claddings to buildings for aesthetic purposes. Apart from that, the client also wants us to detail handrails & glass balustrades for the stairs.
-
Minimum Pocket Depth for Coloumns
What is the minimum pocket depth required for rebated coloumns
The minimum washer size is 3 mm. This could be different. If nothing is mentioned use 3 mm.
The minimum bolt stick out should be 1 pitch. For M20 it is 2.5 mm. Use 10 mm stick out.
Also there is grout. Pockets when cast could be of different depths. Use design grout of 15 mm minimum.
The top of the bolt should be 35 mm below slab level to prevent concrete Cracking.
Hence to be practical use 100 mm pocket depth with a base plate thickness of 16 mm and bolt size of 20 mm.
-
Esplanade Brighton canopy
TEK1 completed a canopy project for a prominent organization in Australia. The goal was to provide detailed support for steelwork canopies.
-
Navigate a million Changes?
Meticulous Care – Expertise alone not sufficent
Meticulous Care – Expertise alone not sufficent With many many changes, Mulitple site meaures, point cloud data, unless the processes are good and the care is meticulous, the knowledge and expertise will not count Street Address ATL Station State NSW Country Australia Modeler Ganesh Kumar
With many many changes, Mulitple site meaures, point cloud data, unless the processes are good and the care is meticulous, the knowledge and expertise will not count
Street Address ATL Station State NSW Country Australia Modeler Ganesh Kumar -
Handling Complex Geometry – Ribbon
Recently, we were awarded a project to detail a curved section on the bridge for a reputed organization in Australia. The geometry involved presented some unique challenges.
From the elevation, the structure followed a non-linear zig-zag curvature, creating a dynamic and aesthetically driven form.
(more…) -
Steel Detailing Projects | Melbourne | Sydney | WA
-
Woolangbar service station
-
7-19 Glider’s way Steel & Precast Model
-
