VARIOUS SPANDREL PROFILES

• Spandrel profiles are designed based on architectural aspects on Elevation purpose.
• When doing this kind of profiles, it’s challenging and more interesting to achieve.
• And also, it will help to improve our drawing knowledge and skill.
• We handled and come across different types of precast spandrel profiles as per below,

1. Spandrel with straight profile
2. Spandrel with curve profile
3. Spandrel with curve & triangle profile
4. Spandrel with L shaped profile
5. Spandrel with U shaped profile
6. Spandrel with V shaped profile

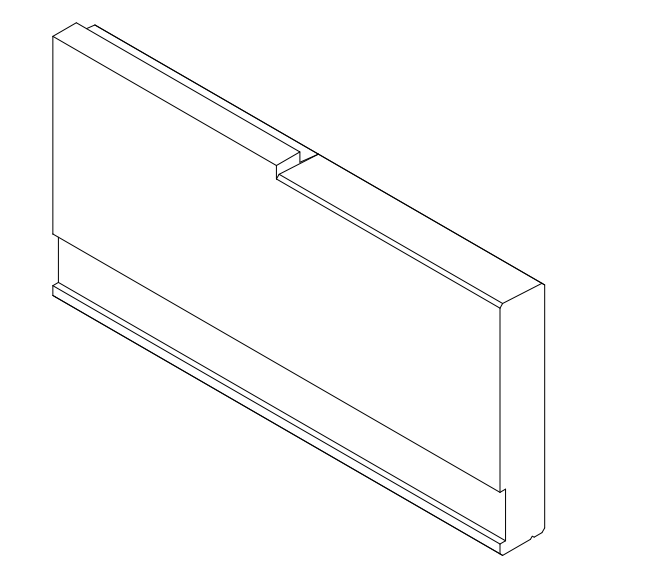

7. Beam type spandrel1. Spandrel with straight profile (Ref. Fig.01)

Fig.01

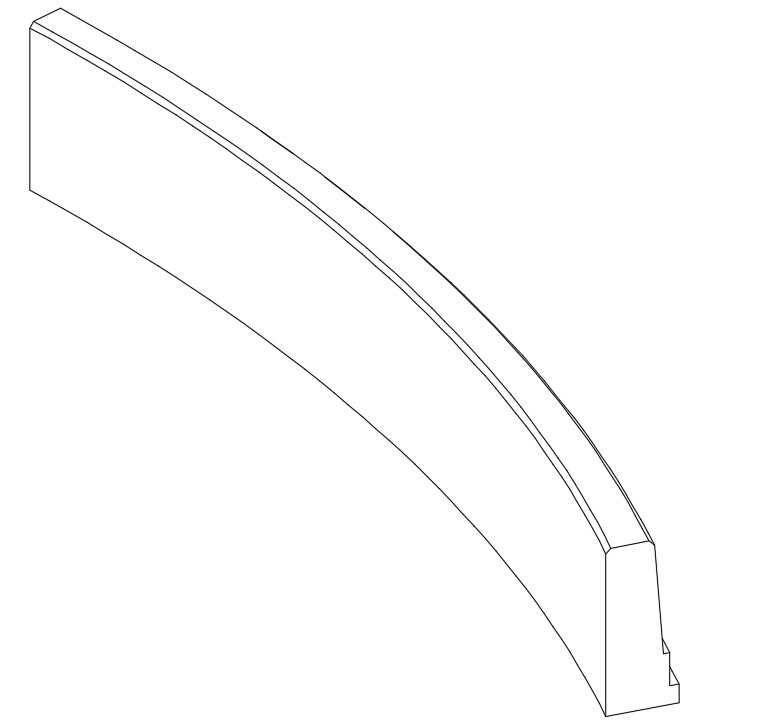

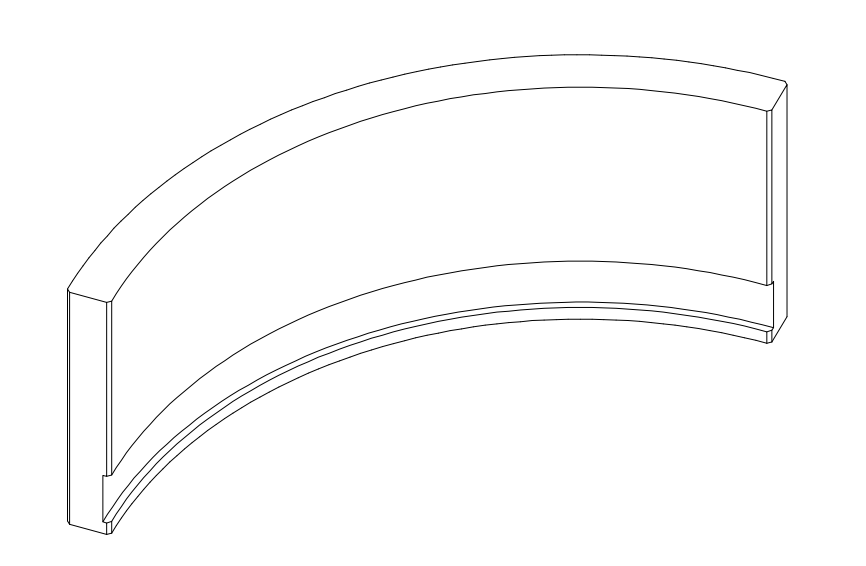

2. Spandrel with curve profile (Ref. Fig.02)

Fig.02

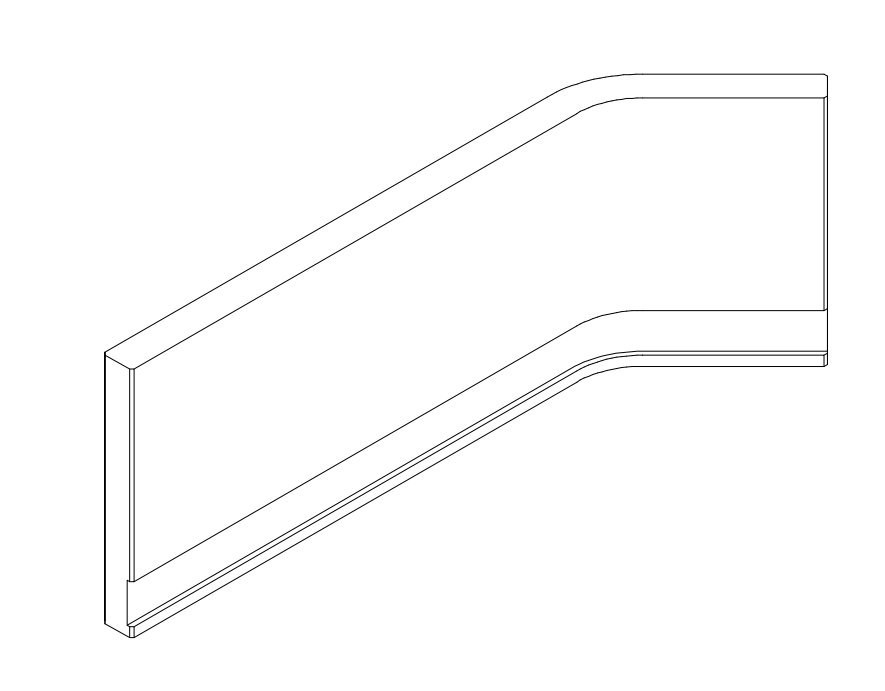

3. Spandrel with curve & triangle profile (Ref. Fig.03)

Fig.03

4. Spandrel with L shaped profile (Ref. Fig.04)

Fig.04

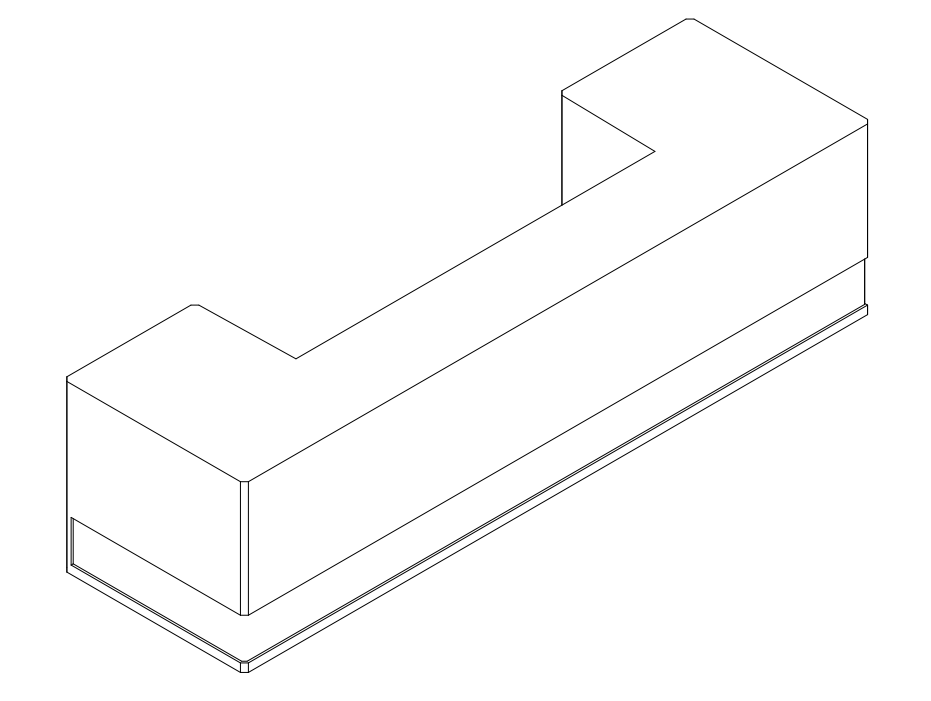

5. Spandrel with U shaped profile (Ref. Fig.05)

Fig.05

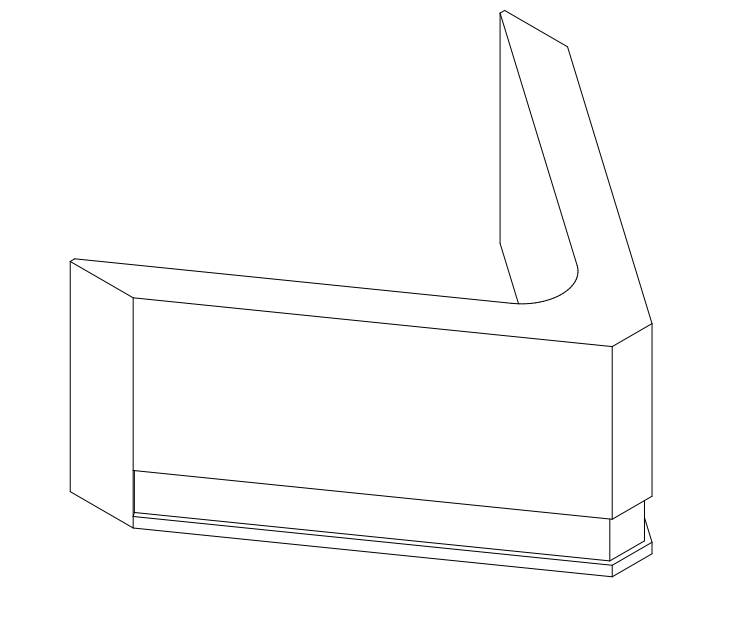

6. Spandrel with V shaped profile (Ref. Fig.06)

Fig.06

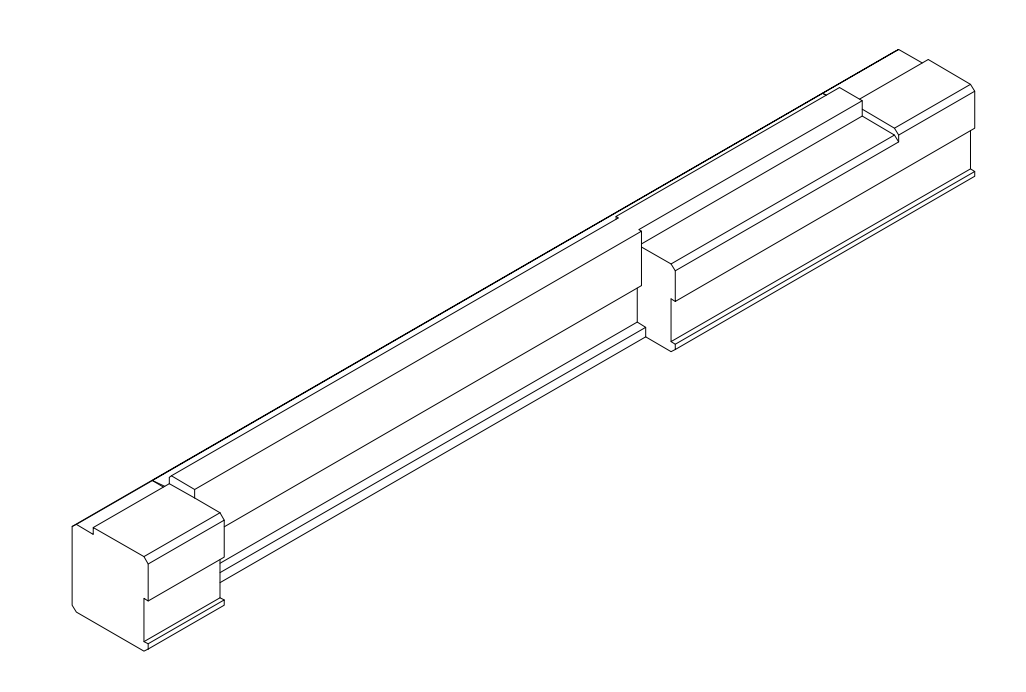

7. Beam type spandrel (Ref. Fig.07)

Fig.07
